SOCKET

•

•

  SOCKET

  Code	Su	L(mm)	L1(mm)
  HSK0013	13	94	44
  HSK0020	20	94	44
  HSK0025	25	94	44
  HSK0030	30	128	59
  HSK0040	40	134	59
  HSK0050	50	134	59
  HSK0060	60	144	59

90° ELBOW

•

•

  90° ELBOW

  Code	Su	L(mm)	L1(mm)
  H9E0013	13	67	44
  H9E0020	20	74	44
  H9E0025	25	83	44
  H9E0030	30	107	59
  H9E0040	40	119	59
  H9E0050	50	127	59
  H9E0060	60	141	59

45° ELBOW

•

•

  45° ELBOW

  Code	Su	L(mm)	L1(mm)
  H4E0013	13	57	44
  H4E0020	20	59	44
  H4E0025	25	64	44
  H4E0030	30	84	59
  H4E0040	40	88	59
  H4E0050	50	90	59
  H4E0060	60	95	59

TEE

•

•

  TEE

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HTE0013	13	112	44	61
  HTE2013	20x13	128	44	73
  HTE0020	20	128	44	64
  HTE2513	25x13	138	44	81
  HTE2520	25x20	138	44	69
  HTE0025	25	138	44	69
  HTE3013	30x13	172	44	84
  HTE3020	30x20	172	44	92
  HTE3025	30x25	172	44	92
  HTE0030	30	172	59	92
  HTE4013	40x13	184	44	88
  HTE4020	40x20	184	44	79
  HTE4025	40x25	184	44	79
  HTE4030	40x30	184	59	96
  HTE0040	40	184	59	96
  HTE5013	50x13	160	44	94
  HTE5020	50x20	160	44	85
  HTE5025	50x25	160	44	85
  HTE5030	50x30	178	59	100
  HTE5040	50x40	178	59	100
  HTE0050	50	178	59	100
  HTE6013	60x13	178	44	99
  HTE6020	60x20	178	44	90
  HTE6025	60x25	178	44	90
  HTE6030	60x30	208	59	109
  HTE6040	60x40	208	59	109
  HTE6050	60x50	208	59	109
  HTE0060	60	208	59	109

WATER TYPE TEE

•

•

  WATER TYPE TEE

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HWT1315	13x1/2”	120	44	40
  HWT2015	20x1/2”	133	44	44
  HWT2020	20x3/4”	133	44	44
  HWT2515	25x1/2”	139	44	48
  HWT2520	25x3/4”	139	44	49
  HWT2525	25x1”	139	44	52
  HWT3015	30x1/2”	180	59	55
  HWT4015	40x1/2”	191	59	58
  HWT5015	50x1/2”	185	59	64
  HWT6015	60x1/2”	214	59	69

REDUCER

•

•

  REDUCER

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HRS2013	20x13	103	44	44
  HRS2513	25x13	115	44	44
  HRS2520	25x20	103	44	44
  HRS3013	30x13	139	59	44
  HRS3025	30x25	122	59	44
  HRS4013	40x13	148	59	44
  HRS4020	40x20	141	59	44
  HRS4025	40x25	132	59	44
  HRS4030	40x30	142	59	59
  HRS5013	50x13	149	59	44
  HRS5020	50x20	150	59	44
  HRS5025	50x25	148	59	44
  HRS5030	50x30	156	59	59	±3
  HRS5040	50x40	142	59	59
  HRS6020	60x20	161	59	44
  HRS6025	60x25	155	59	44
  HRS6030	60x30	178	59	59
  HRS6040	60x40	163	59	59
  HRS6050	60x50	150	59	59

ADAPTER SOCKET-FEMALE

•

•

  ADAPTER SOCKET-FEMALE

  Code	Su	L(mm)	L1(mm)
  HFS1315	13x1/2”	70	44
  HFS2015	20x1/2”	70	44
  HFS2020	20x3/4”	70	44
  HFS2515	25x1/2”	70	44
  HFS2520	25x3/4”	70	44
  HFS2525	25x1”	70	44
  HFS3025	30x1”	87	59
  HFS3032	30x1  1/4”	92	59
  HFS4032	40x1  1/4”	92	59
  HFS4040	40x1  1/2”	92	59
  HFS5040	50x1  1/2”	92	59
  HFS5050	50x2”	92	59
  HFS6050	60x2”	92	59

ADAPTER ELBOW-FEMALE

•

•

  ADAPTER ELBOW-FEMALE

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HFE1315	13x1/2”	67	44	46
  HFE2015	20x1/2”	74	44	53
  HFE2020	20x3/4”	74	44	53
  HFE2515	25x1/2”	83	44	62
  HFE2520	25x3/4”	83	44	62
  HFE2525	25x1”	83	44	62
  HFE3025	30x1”	107	59	71
  HFE3032	30x1  1/4”	107	59	76
  HFE4032	40x1  1/4”	119	59	88
  HFE4040	40x1 1/2”	119	59	88
  HFE5040	50x1  1/2”	127	59	96
  HFE5050	50x2”	127	59	96
  HFE6050	60x2”	141	59	110
  HFE1315L	13x1/2”	67	44	105
  HFE2015L	20x1/2”	74	44	100
  HFE2020L	20x3/4”	74	44	100

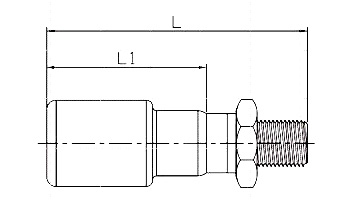

ADAPTER SOCKET-MALE

•

•

  ADAPTER SOCKET-MALE

  Code	Su	L(mm)	L1(mm)
  HMS1315	13x1/2”	77	44
  HMS2020	20x3/4”	82	44
  HMS2525	25x1”	85	44
  HMS3025	30x1”	102	59
  HMS3032	30x1  1/4”	104	59
  HMS4032	40x1  1/4”	104	59
  HMS4040	40x1  1/2”	106	59
  HMS5040	50x1  1/2”	106	59
  HMS5050	50x2”	112	59
  HMS6050	60x2”	112	59

ADAPTER ELBOW-MALE

•

•

  ADAPTER ELBOW-MALE

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HME1315	13x1/2”	67	44	55
  HME2020	20x3/4“	74	44	65
  HME2525	25x1”	83	44	77
  HME3025	30x1”	107	59	86
  HME3032	30x1  1/4”	107	59	88
  HME4032	40x1  1/4”	119	59	100
  HME4040	40x1  1/2”	119	59	102
  HME5040	50x1  1/2”	127	59	110
  HME5050	50x2”	127	59	116
  HME6050	60x2”	141	59	130

CAP

•

•

  CAP

  Code	Su	L(mm)	L1(mm)
  HCP0013	13	72	44
  HCP0020	20	72	44
  HCP0025	25	85	44
  HCP0030	30	102	59
  HCP0040	40	102	59
  HCP0050	50	102	59
  HCP0060	60	102	59

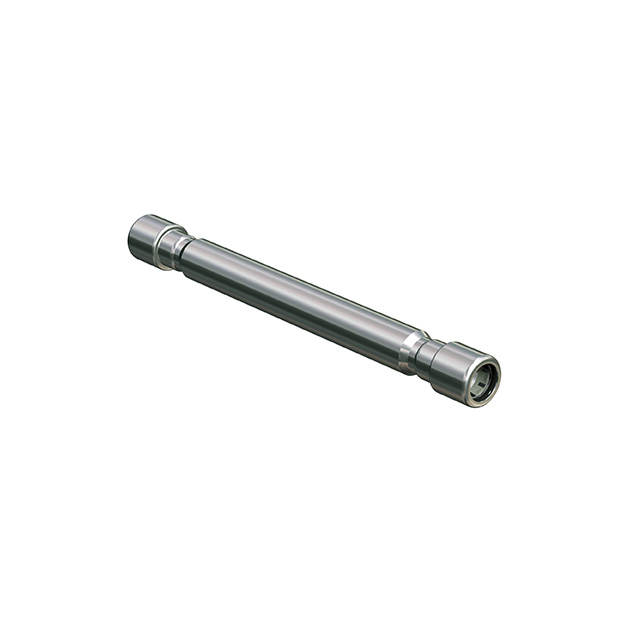

ANCHOR SOCKET

•

•

  ANCHOR SOCKET

  Code	Su	L(mm)	L1(mm)
  HAS1315	13	397	44
  HAS2020	20	401	44
  HAS2525	25	419	44
  HAS3032	30	453	59
  HAS4040	40	459	59
  HAS5050	50	465	59
  HAS6065	60	525	59

HOOK-UNION

•

•

  HOOK-UNION

  Code	Su	L(mm)	L1(mm)
  HUS1315	13x1/2”	95	44
  HUS2020	20x3/4”	100	44
  HUS2525	25x1”	106	44
  HUS3032	30x1  1/4”	127	59
  HUS4040	40x1  1/2”	132	59
  HUS5050	50x2”	141	59
  HUS6065	60x2”	149	59

HOOK-FLANGE

•

•

  HOOK-FLANGE

  Code	Su	L(mm)	L1(mm)	L2(mm)
  HFS1315	13x15A	84	44	40
  HFS2020	20x20A	84	44	40
  HFS2525	25x25A	106	44	62
  HFS3032	30x32A	123	59	64
  HFS4040	40x40A	124	59	65
  HFS5050	50x50A	131	59	72
  HFS6065	60x65A	144	59	85

  * Flange is the standard for use at 10 bar.If you use 20 bar, please contact us

WELDING REDUCER

•

•

  WELDING REDUCER

  Su
  13Su x 65A ~ 60Su x 150A	Please ask us about dimension and size details of each product Thickness given by SCH10 standard Please contact us about other products that are not in this table

  * When using a groove joint, please contact us

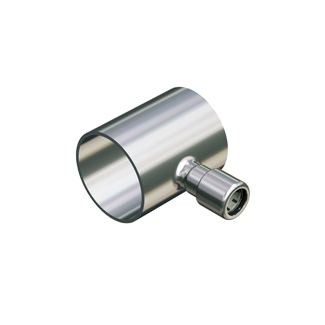

WELDING TEE

•

•

  WELDING TEE

  Su
  13Su x 65A ~ 60Su x 150A	Please ask us about dimension and size details of each product Thickness given by SCH10 standard Please contact us about other products that are not in this table.

  * When using a groove joint, please contact us
